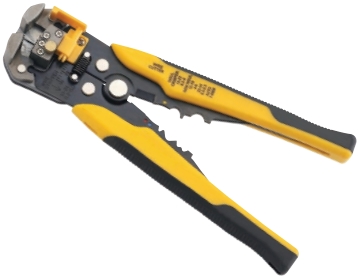

SH-D1 / SH-D2

Easy stripping without any adjustment
Multifunction, made of steel by special hardened, with long lifetime
For stripping wire from AWG24-10 (0.2~6.0mm²)
For cutting and stripping wire and cable
For crimping insulated and non-insulated terminals

SH-D1

SH-731

Easy stripping without any adjustment
Multifunction, made of steel by special hardened, with long lifetime
For stripping wire from AWG24-10 (0.2~6.0mm²)
For cutting and stripping wire and cable
For crimping insulated and non-insulated terminals

For power cord with multiple cores or single core 0.5~6mm²(20-10AWG)
Stripping length: 8~20mm
Automatically adjust wire diameter according to wire thickness and quickly accurately strip
Clamping pipe terminal: 0.5~6mm²
Two clamping ranges for option: 0.5~2.5mm² and 4.0~6.0mm²

1. Stripping is based on the  required length.
2. Press down with thumb  and push ahead
3. Maximum shear cross-section of conducting wire
4. Select clamping nozzle according  to the size of pipe terminal
5. Push forward with thumb  when crimping

For stripping standard insulation of the single, multiple or thin cables and wires of 0.2-6.0mm²
Small stripping head, suitable for narrow operation space
With wire cutter for copper and aluminum wires, cutting cross section up to 2.5mm²

Applicable for windpipe under 12mm²
Various coaxial cables, exterior stripping range: ø4~8mm
